SX Series

Spiral Mixers with Fixed Bowl

SARMAŞIK industrial spiral dough mixers present the best mixing quality with its perfect design and standards among all other spiral mixers.

Features

  • Ideal mixer for all types of dough such as hard, soft and specially blended.
  • System is designed without a breaking bar which cuts/damages the dough.
  • Specially designed spiral turn radius and increased bowl surface result in excellent mixing quality.
  • Continuous feeding of the dough towards the spiral hook ensures homogenous mixing with at least %5 more water absorption.
  • Mixing batch diversity from 5 kg to 160 kg.
  • Two direction bowl rotation control makes mixing faster and easier.
  • Two speed mixing process.
  • AISI 304 stainless steel spiral hook and heavy-duty mixing bowl.
  • Hygienic design with smooth surfaces for easy cleaning.
  • Safe operation with bowl safety cover.

Technical Details

Model

Width (A)

Length (B)

Height (C)

Bowl Capacity - Dimensions

Total Power

Power Requirements

Weight

Dough

Diameter (Ø)

Depth

cm

cm

cm

kg

cm

cm

kW

kg

SX 35

54

88

110

25

50

27

4

220-380 V 50 Hz

245

SX 100

71

123

125

80

68

40

6.25

500

SX 160

96

143

132

160

85

43

8.25

720

Subject to alteration without prior notice.

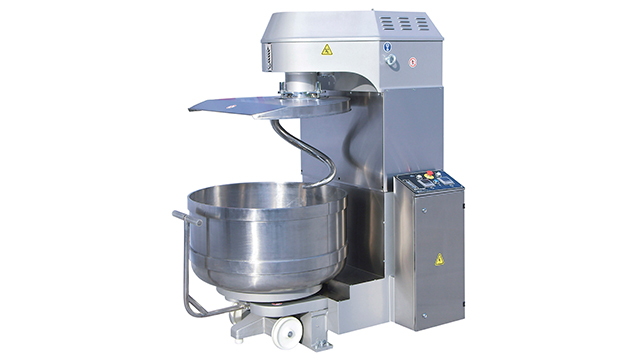

Machine Views
